Dimensions and lines addon for Blender

Dimensions and Lines – CAD-Style Dimensioning & Technical Drawings for Blender

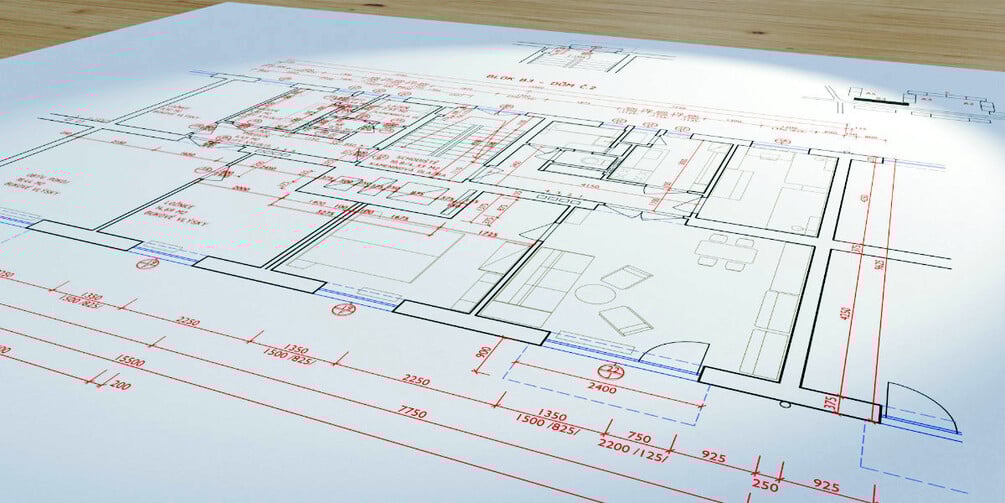

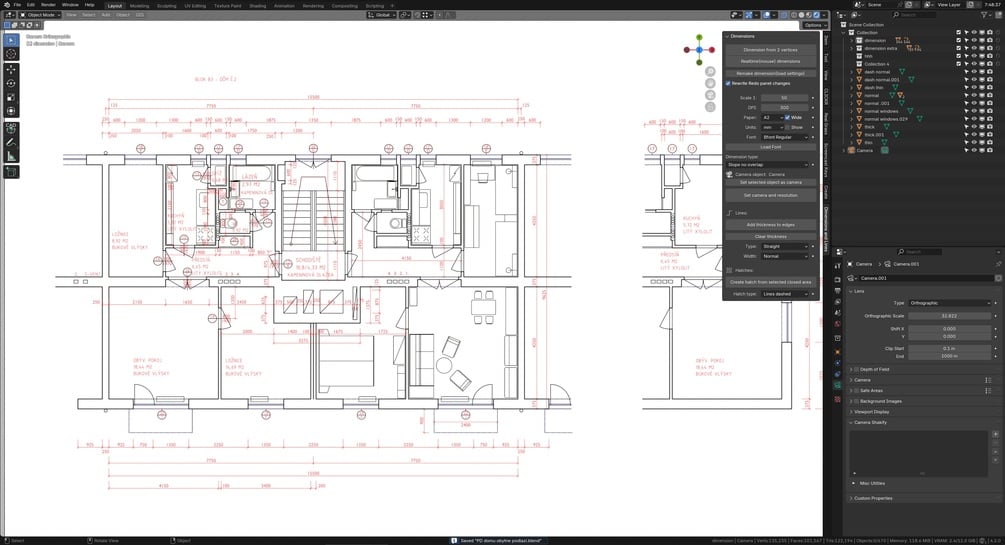

Dimensions and Lines is a Blender addon that enables the creation of dimensions, technical drawings, and blueprint-style layouts directly inside Blender.
It brings CAD-like dimensioning workflows into the 3D viewport while keeping all generated geometry fully renderable and non-destructive.

Key Features

📐 CAD-Style Dimension Creation

Create dimensions interactively with the mouse, using workflows similar to traditional CAD applications.
Dimensions update in real time and remain consistent with scene changes.

📏 Non-Destructive Mesh Lines

Generate construction lines from existing edges as real mesh geometry, without modifying the original model.
All lines and dimensions can be rendered like standard Blender objects.

🎯 Dedicated Snapping System

Dimension creation uses its own snapping system, allowing precise snapping to line centers and generated geometry for accurate technical drawings.

📄 Camera Setup for Technical Drawings

Configure cameras for specific paper sizes with correct render resolution based on selected DPI, making it easy to produce print-ready technical layouts.

🧱 Line and Hatch Types

Create multiple line styles and hatch patterns, suitable for sections, schematic views, and blueprint-style drawings.

🎥 Videos

Quick showcase:
https://youtu.be/AUrDvTMnmDY

Video tutorial:
https://youtu.be/Q3rGMpYz0o8

📘 Documentation

Please refer to Manual.pdf for detailed usage instructions and additional information.

💙 Support & Development

This version is provided as-is.
If you would like to support further development and new features, you can contribute here:
https://paypal.me/JanHolinka

Changelog

1.0.7

• Significant performance improvement of realtime mode in large scenes

1.0.6

• Added Continue Mode (press C during realtime dimension creation)
• Added inches unit (without feet)
• Various redo / rewrite / remake bug fixes

1.0.5

• Fixed redo decimals and scale-freeze bug

1.0.4

• Redo / rewrite fix

1.0.3

• Fixed redo panel issue when changing units from edit mode to object mode

1.0.2

• Added 3–1 lines hatch type
• Added additional paper sizes (US / ISO)
• Removed hatch console debug output

1.0.1

• Added imperial units
• Partial reengineering of dimension system

🧭 Intended Audience

DimLines is intended for technical users, such as engineers, designers, and CAD-oriented Blender users who require precision-focused dimensioning and technical drawing tools.
